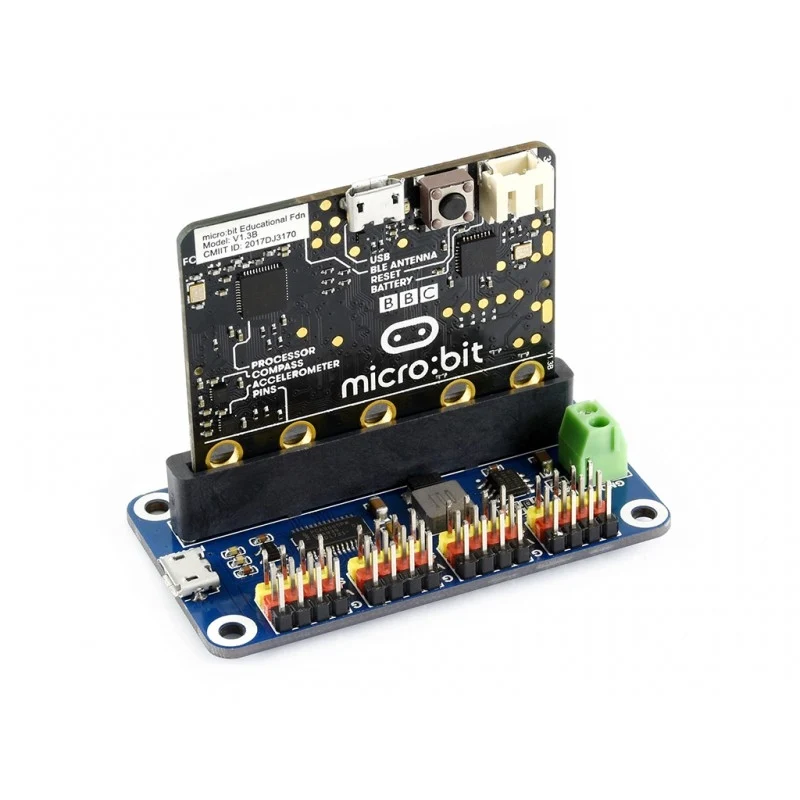

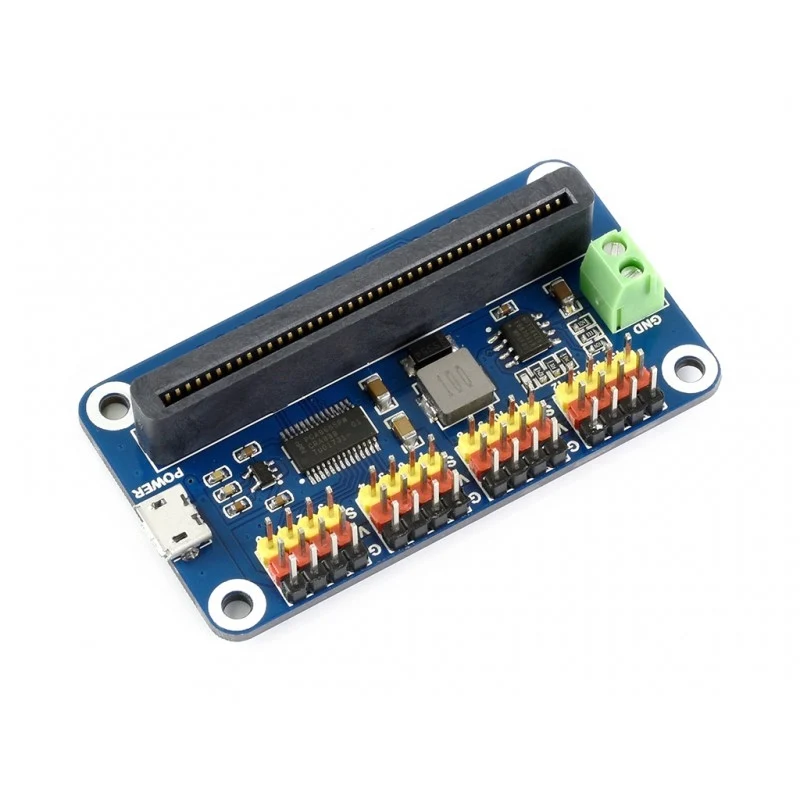

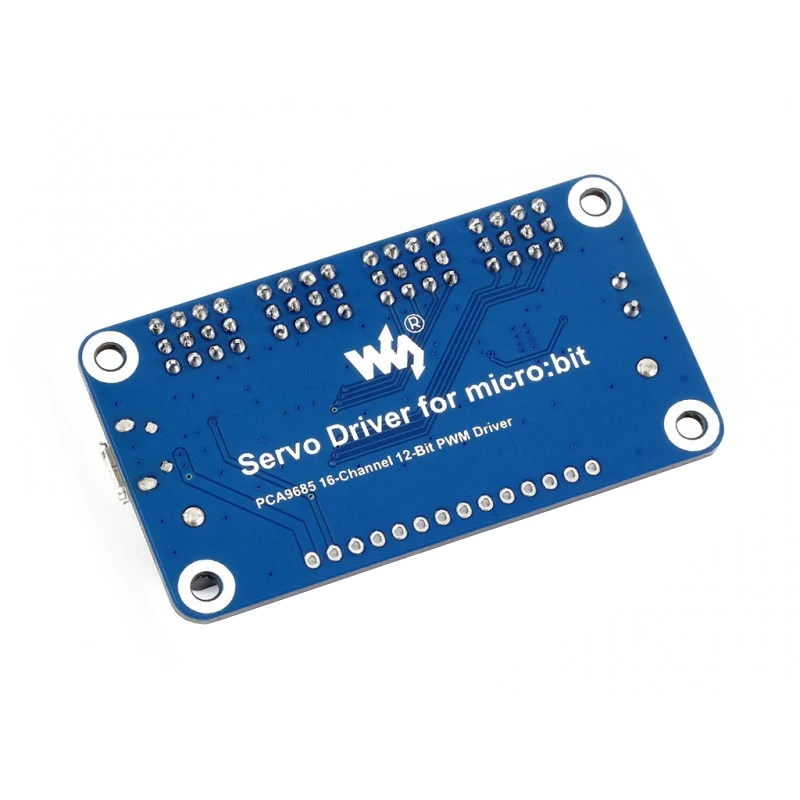

Waveshare 16 Servo Controller Board for micro:bit

• Waveshare 16 Servo Controller Board
• Designed for the BBC micro:bit Programmable Board(not included)
• Lets you connect up to 16-Channel servo/PWM outputs
• Features a 12-bit resolution for each channel (4,096 scales)
• Comes with development resources and manual

This Waveshare 16 Servo Controller Board for micro:bit lets you connect up to 16 servos. It is designed for the BBC micro:bit (not included).

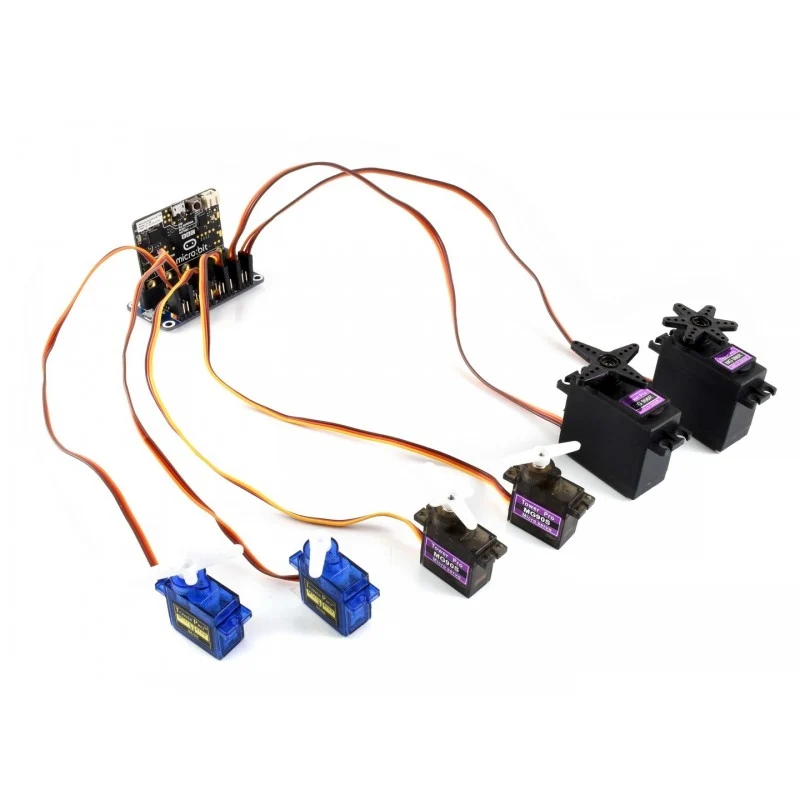

The controller board integrates a 5V regulator, up to 3A output current, and can be powered from a battery through a VIN terminal. The standard servo interface supports commonly used servos such as SG90, MG90S, MG996R, etc. It has reserved I2C control pins, allowing you to work with other control boards.
