Proteus PCB Design Software Level 2+ (2000 Pins)

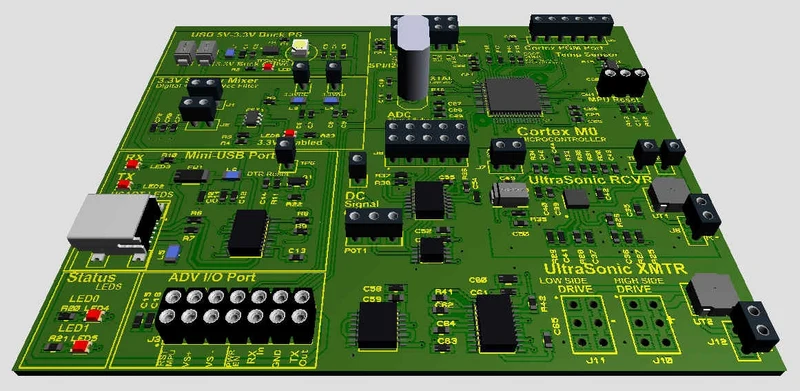

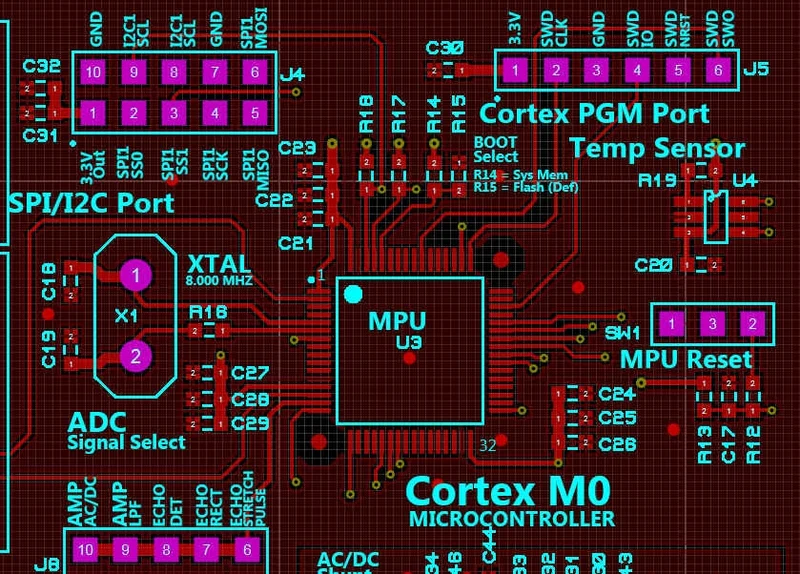

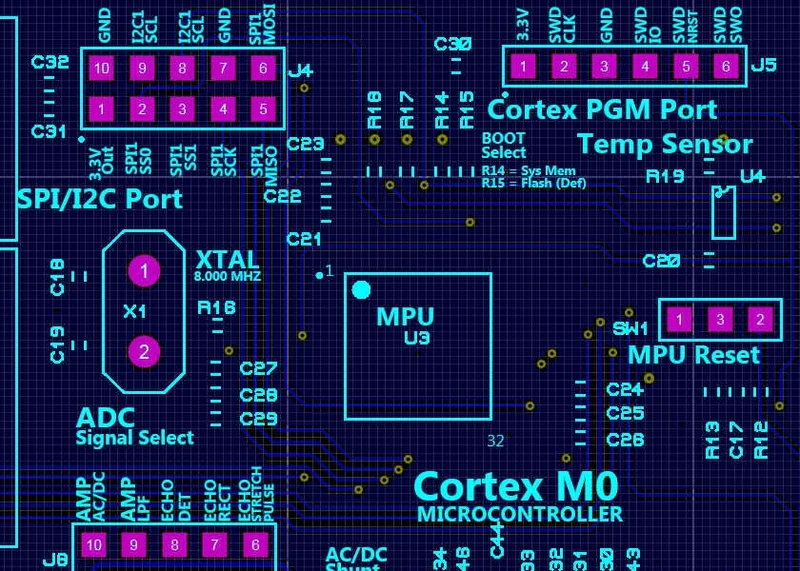

• Combines the schematic capture and ARES PCB layout programs
• Provide a powerful, integrated and easy to use suite

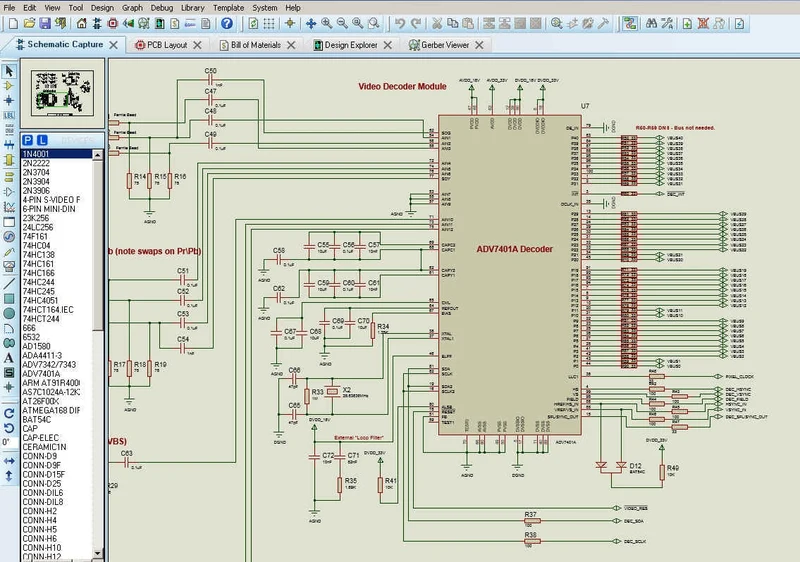

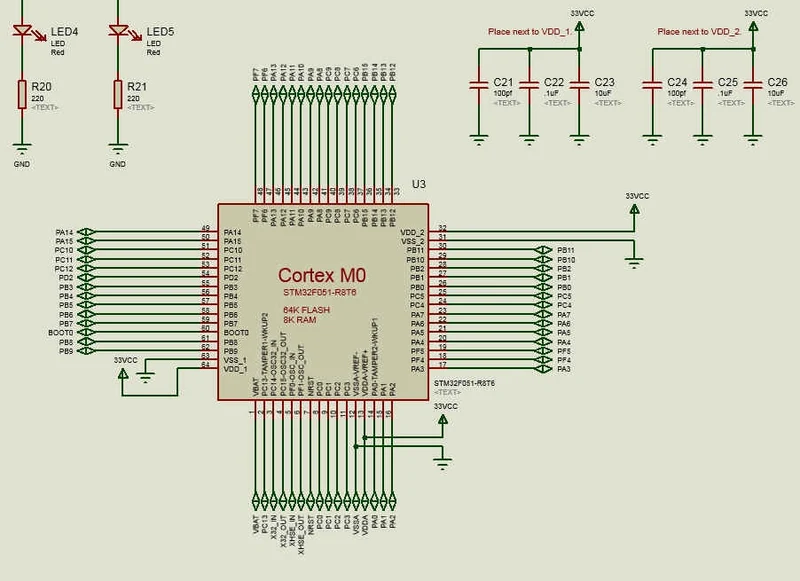

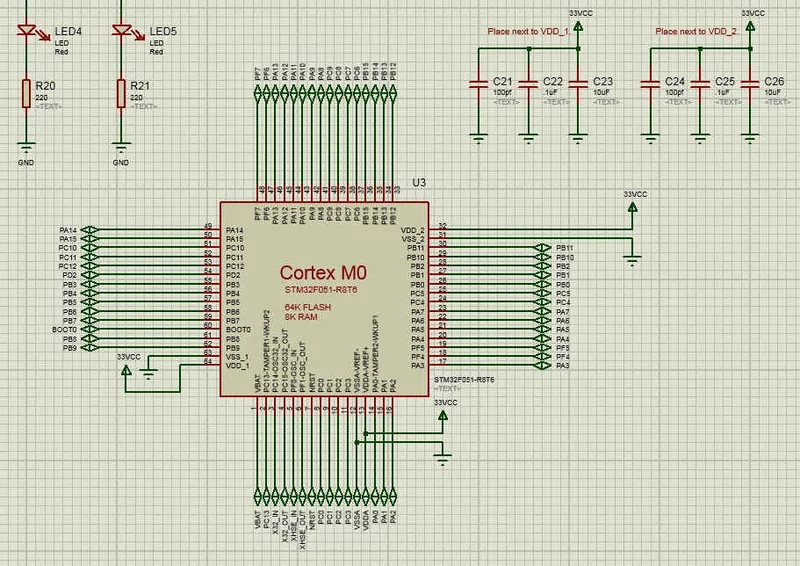

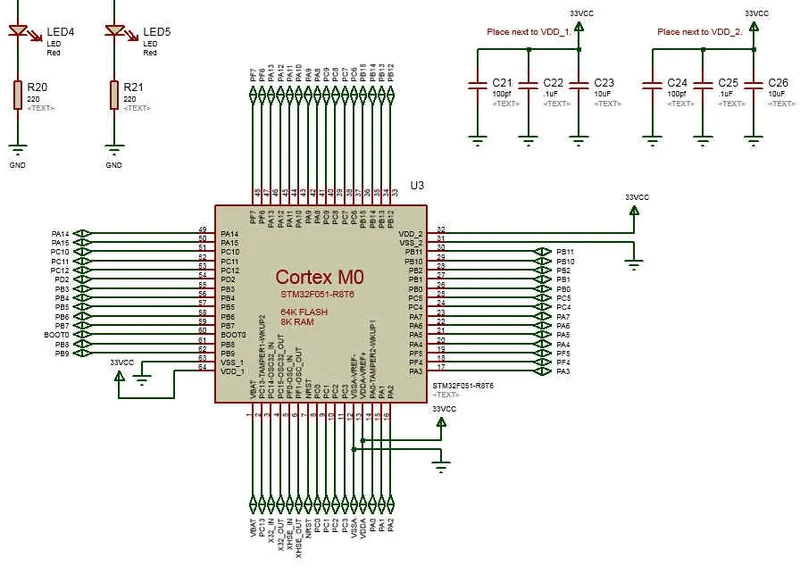

• Professional schematic capture

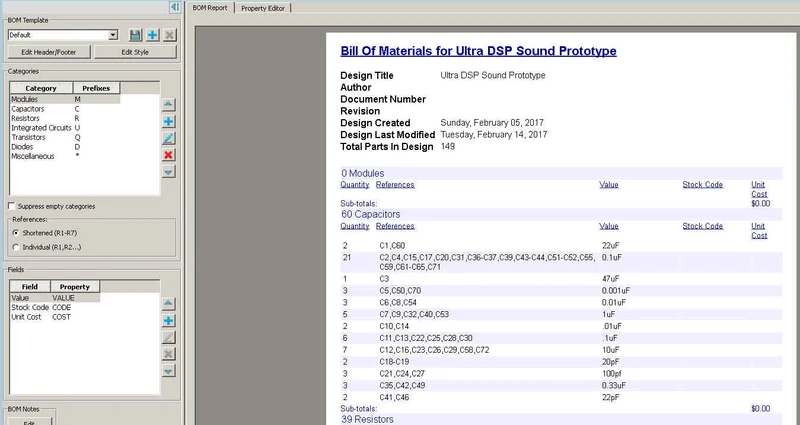

• Fully customizable BOM reporting
• 2000 Pins

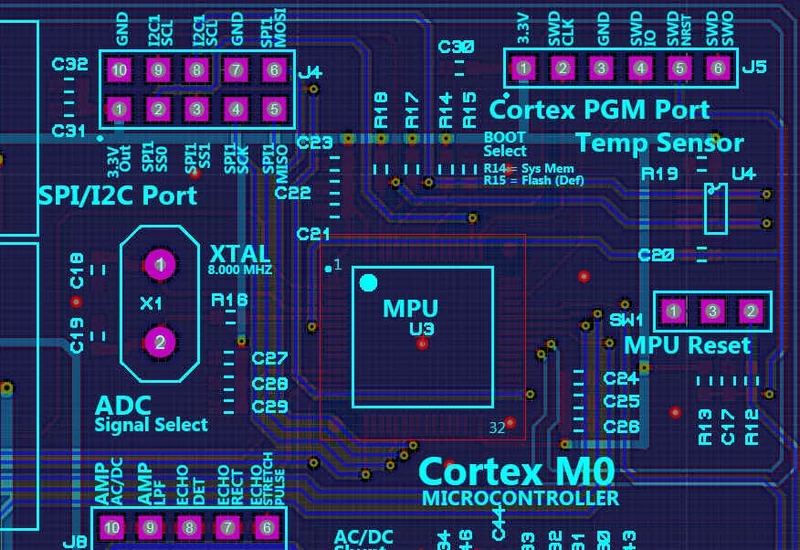

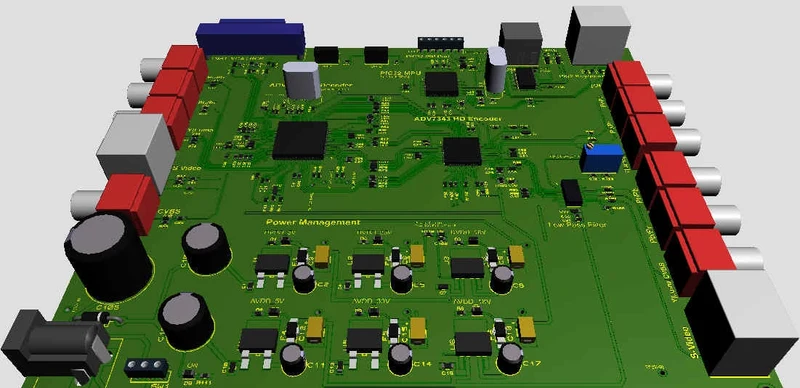

The Proteus PCB Design Software Level 2+ (2000 Pins) combines the schematic capture and ARES PCB layout programs to provide a powerful, integrated and easy to use suite of tools for professional PCB Design. The Proteus PCB Design Software Level 3 has the option of Professional feature set.

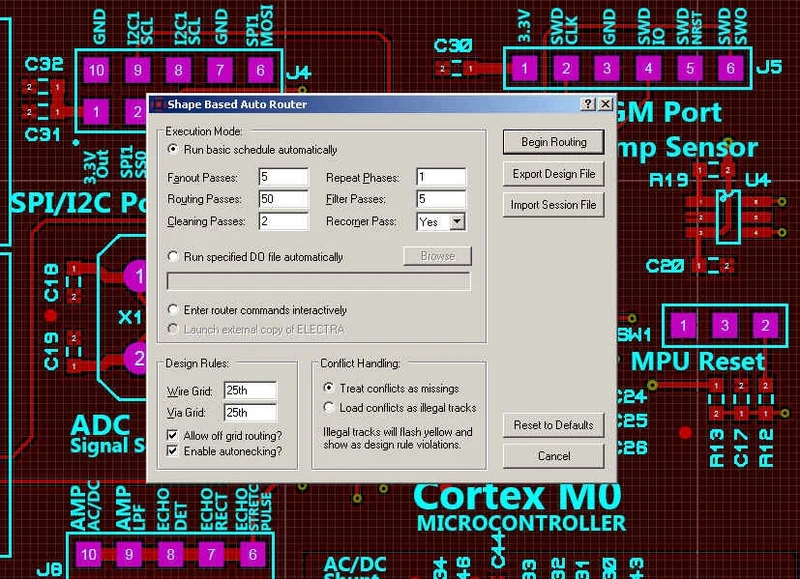

All Proteus PCB design products include an integrated shape based autorouter and a basic SPICE simulation capability as standard. More advanced routing modes are included in Proteus PCB Design Level 2 and higher whilst simulation capabilities can be enhanced by purchasing the Advanced Simulation option and/or micro-controller simulation capabilities.

Note: The software includes a 6-Month USC (Update Service Contract)
