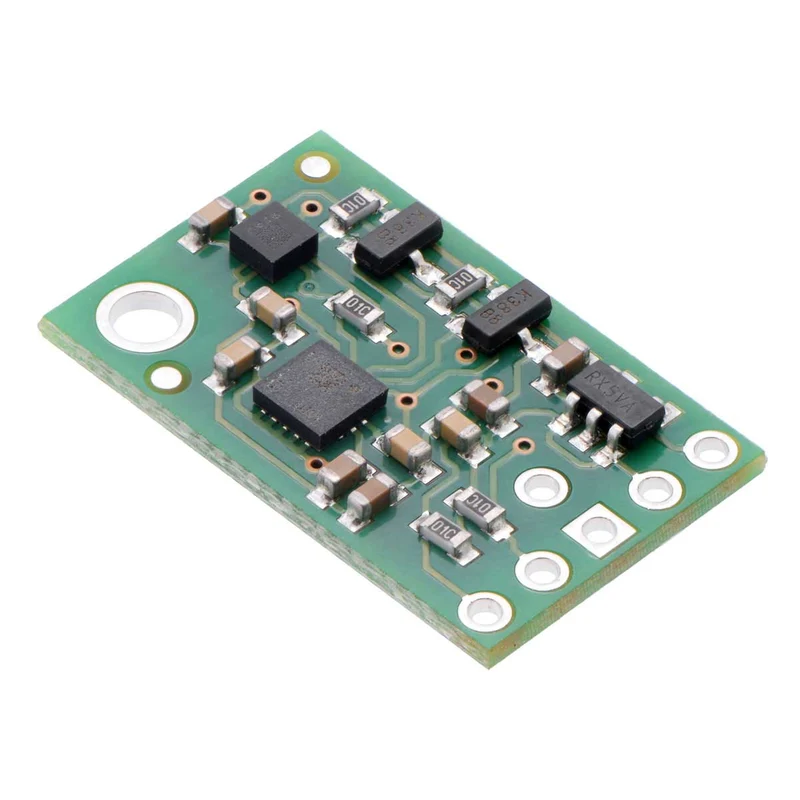

MinIMU-9 v5 Gyro, Accelerometer and Compass (LSM6DS33 and LIS3MDL Carrier)

• Includes a gyroscope, accelerometer and a compass
• I²C interface accesses nine independent rotation
• Includes a voltage regulator and a level-shifting circuit
• Allow operation from 2.5 to 5.5 V

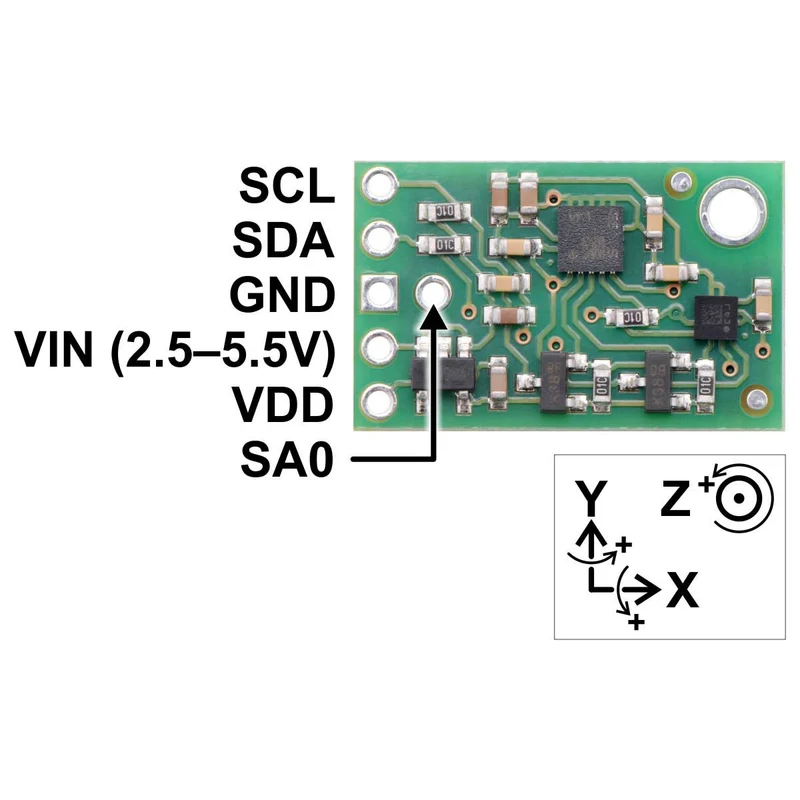

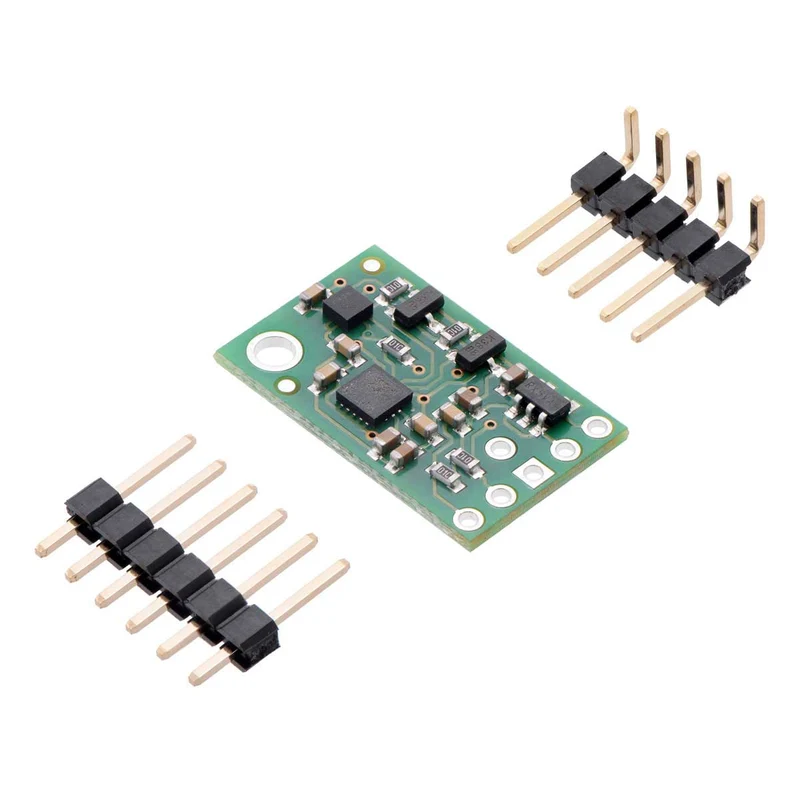

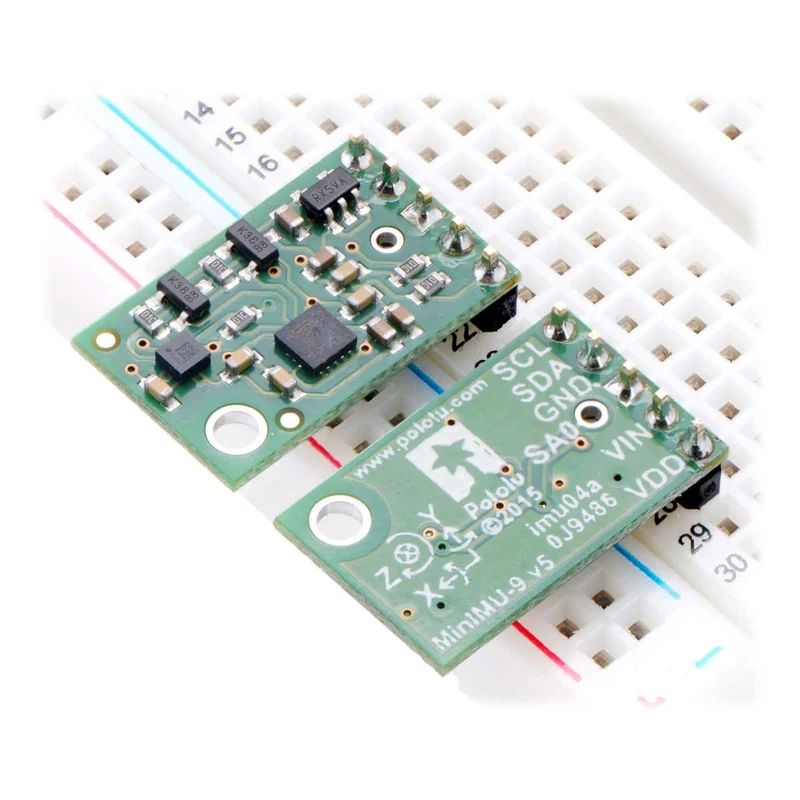

The MinIMU-9 v5 Gyro, Accelerometer and Compass (LSM6DS33 and LIS3MDL Carrier) is an inertial measurement unit (IMU) that packs an LSM6DS33 3-axis gyro and 3-axis accelerometer and an LIS3MDL 3-axis magnetometer onto a tiny 0.8″ × 0.5″ board. An I²C interface accesses nine independent rotation, acceleration, and magnetic measurements that can be used to calculate the sensor’s absolute orientation. The MinIMU-9 v5 board includes a voltage regulator and a level-shifting circuit that allow operation from 2.5 to 5.5 V, and the 0.1″ pin spacing makes it easy to use with standard solderless breadboards and 0.1″ perfboards.
