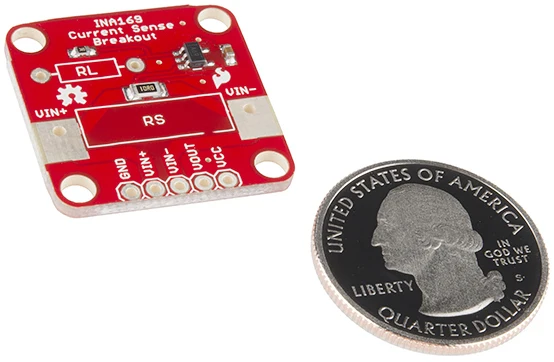

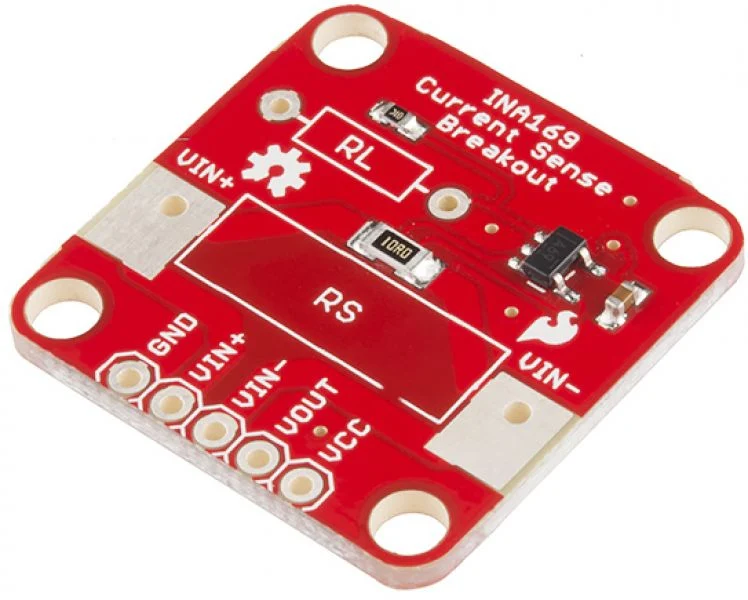

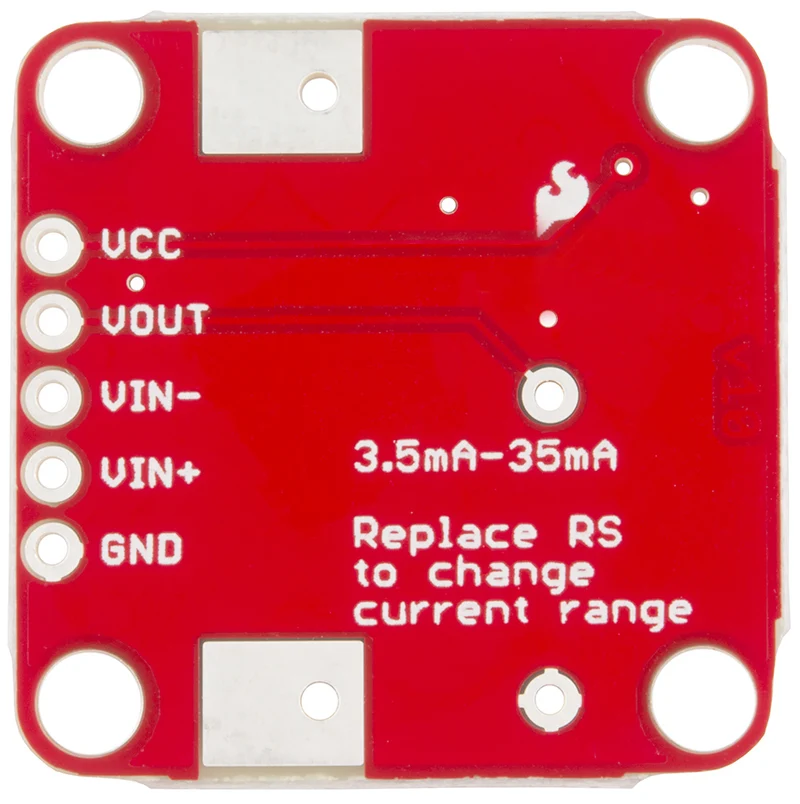

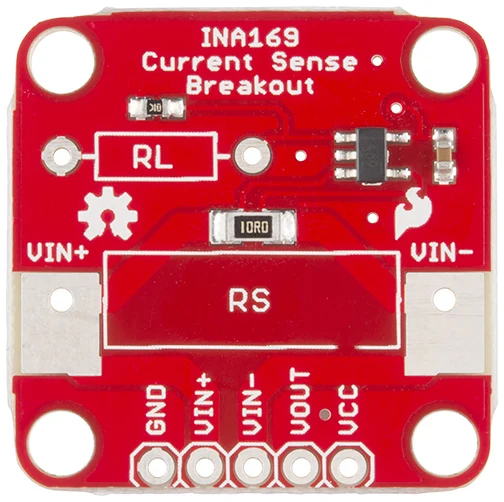

INA169 Current Sensor

• Complete unipolar, high-side current measurement circuit
• Independent supply and input common mode voltages
• Low quiescent (sleep) current (60µA typical)
• RoHS compliant

The INA169 Current Sensor is a ''high-side current monitor,'' which means that you place your resistor (a ''shunt resistor'', sold separately) on the positive power rail and the INA169 measures the voltage drop across that resistor.
