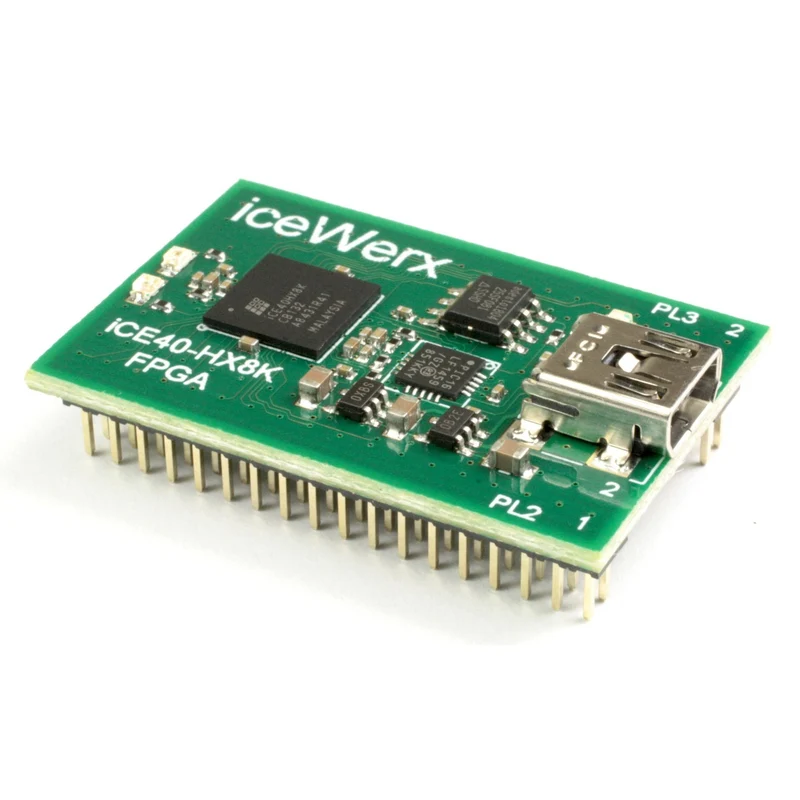

Devantech iceWerx iCE40-HX8K FPGA

• Devantech iceWerx iCE40-HX8K FPGA
• Features an easy to use FPGA module
• Provides 4 x 10-bit analogue channels
• Generates a 12MHz clock

The Devantech iceWerx iCE40-HX8K FPGA an on-board PIC16LF1459 takes care of USB programming. FPGA reset and start-up and also provides 4 * 10-bit analogue channels. These are available via a serial port to the FPGA. The PIC also generates a 12 MHz clock to the FPGA which may be multiplied in a PLL as required.

Power is from USB or a nominal 5 volts (3.5 V to absolute max. 6 V). By taking care of all the multiple power supply, sequencing and bitstream support, iceWerx provides an easy to use FPGA module ready to integrate into your own project.
